Aluminium Frame

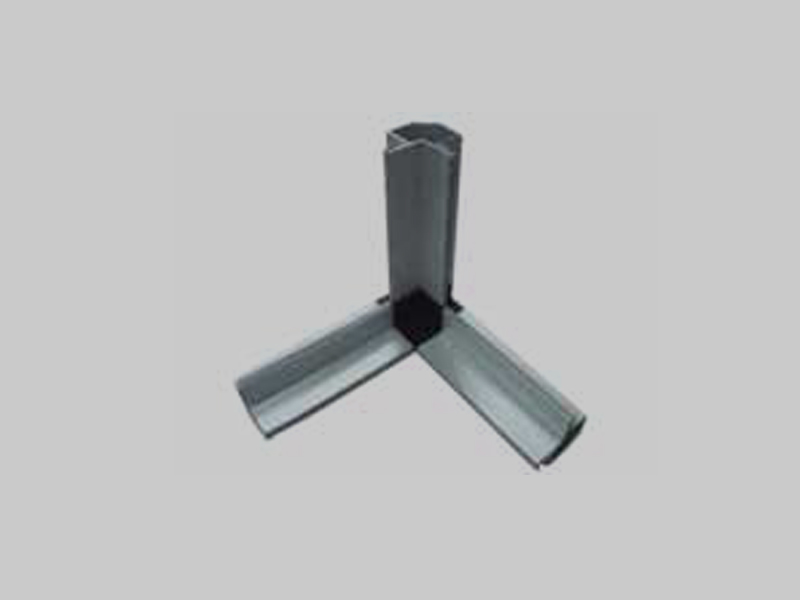

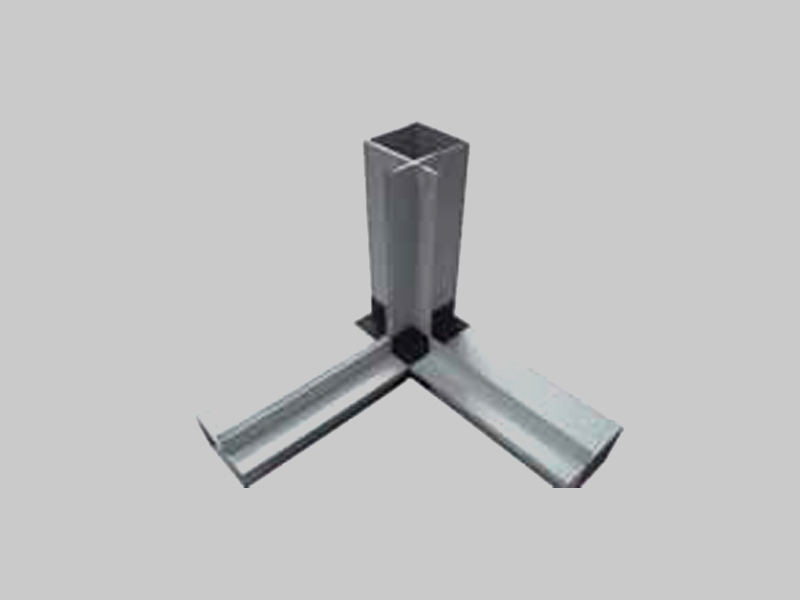

Structure is made from hollow extruded heavy aluminum profiles, anodized for extra anticorrosion protection. Frame provides excellent rigidity and stability to the structure along with the good aesthetics. These profiles are specially designed for HVAC applications, Profi les are connected by means of special die cast Glass filled nylon corner piece to form the air handling unit sections.

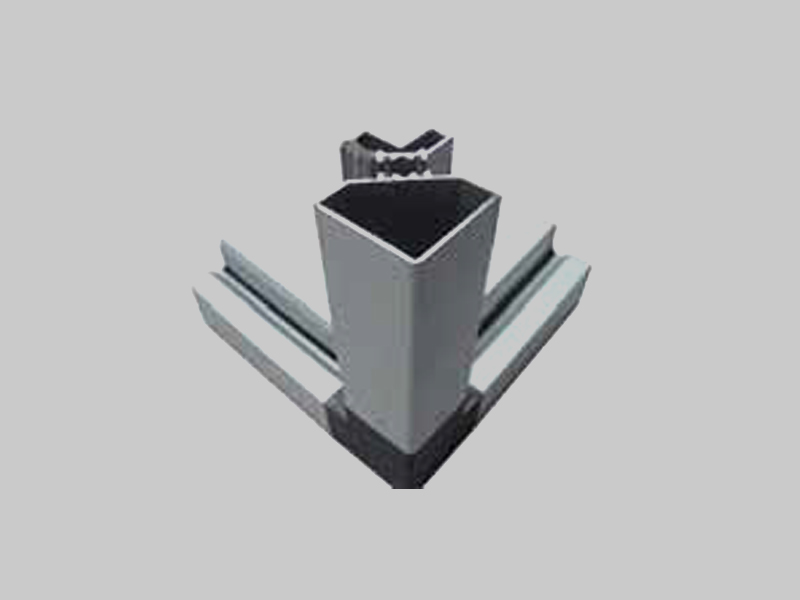

Frame sizes for panels of various thickness such us 25mm and 50mm are also available. 50mm thermal break profi le has an excellent thermal bridging and least thermal transmittance properties which are in accordance to EN1886.
Following are the features of this construction:

• Aluminium frame construction
• Good mechanical strength
• Perfect appearance and precise dimensions
• Quick and precise installation of the interior components
• Can be easily dismantled and assembled at minimum time and cost
• Flexibility of Construction
