Air Handling Units – SK-25-FM/CS

Standard Air handling are of two types Floor mounted (FM)/ Ceiling suspended (CS) which are also known as recirculation AHU.
Horizontal Floor Mounted units (FM). SK-25-FM series consist of the 25 mm thick profile without thermal brake suitable for
Indoor applications are insulated with double skin CFC free PUF with uniform Density of 40 Kg/m3
The unit consists of following components
• Prefilter section
• Cooling coil section
• Forward or backward curved blower
• 3 phase induction motor
• Mixing box can be provided, if required

Fresh Air Handling Units – SK50T-PW (with heat exchanger and heat pipe)

SK50T-PW- Series are Fresh Air handling units capable of handling the air volume from 1700 CMH to 60000 CMH and handling external static pressure of up to 1000 pa. The casing consist of 50 mm thick profile with Thermal bridge which ensures that no
condensation takes place on the surface of AHU. The panels are of 50 mm thick insulated with CFC free PUF with uniform density of
40 kg/m3. The unit consists of following components. Double tier units with supply section on lower side and return/exhaust on upper side
Supply Section:
• Intake section with G.I powder coated sand trap louvers (optional)
• Combination fi lter section with pre and bag fi lters
• Rotary heat recovery wheel for energy recovery
• Horse shoe heat pipe for energy recovery and cooling and dehumidification
• Cooling coil ( CHW or DX type)
• Forward or Backward curved blower
• 3 phase foot mounted induction motor
Return Section:
• Intake section
• Prefi lter
• Rotary heat recovery wheel for energy recovery
• Forward or Backward curved blower
• 3 phase foot mounted induction motor

Fresh Air Handling Units – SK50T-WO (W- Heat wheel)

SK50T-WO-Series are Fresh Air handling units capable of handling the air volume from 1700 CMH to 60000 CMH and handling external static pressure of up to 1000 pa. The casing consist of 50 mm thick profile with Thermal bridge which ensures that no
condensation takes place on the surface of AHU. The panels are of 50 mm thick insulated with CFC free PUF with uniform density of
40 kg/m3 The unit consists of following components:
Double tier units with supply section on lower side and return/exhaust on upper side Supply Section:
• Intake section with G.I powder coated sand trap louvers (optional)
• Combination filter section with pre and bag filters
• Rotary heat recovery wheel or PHE or HPHR for energy recovery
• Forward or Backward curved blower
• 3 phase foot mounted induction motor
Return Section:
• Intake section
• Prefilter
• Rotary heat recovery wheel for energy recovery
• Forward or Backward curved blower
• 3 phase foot mounted induction motor

Fresh Air Handling Units – SK50T-PO (P-Heat pipe)

SK50T-PO – Series are Horizontal Floor mounted Fresh Air handling units capable of handling the air volume from 1700 CMH to 60000 CMH and handling external static pressure of up to 1000 pa. The casing consist of 50 mm thick profile with Thermal bridge which ensures that no condensation takes place on the surface of AHU. The panels are of 50 mm thick insulated with CFC free PUF with uniform density of 40 kg/m3. The unit consists of following components
• Intake section with G.I powder coated sand trap louvers (optional)
• Combination filter section with pre and bag filters
• Horse shoe heat pipe for energy recovery and cooling and dehumidification
• Cooling coil ( CHW or DX type)
• Forward or Backward curved blower
• 3 phase foot mounted induction motor.



Fresh Air Handling Units- SK50T (T- Thermal break)

SK50T – Series are Horizontal Floor mounted Fresh Air handling units capable of handling the air volume from 1700 CMH to 60000 CMH and handling external static pressure of up to 1000 pa. The casing consist of 50 mm thick profile with Thermal bridge which ensures that no condensation takes place on the surface of AHU The panels are of 50 mm thick insulated with CFC free PUF with uniform density of 40 kg/m3 The unit consists of following components
• Intake section with G.I powder coated sand trap louvers (optional)
• Combination filter section with pre and bag filters
• Cooling coil ( CHW or DX type)
• Forward or Backward curved blower
• 3 phase foot mounted induction motor.

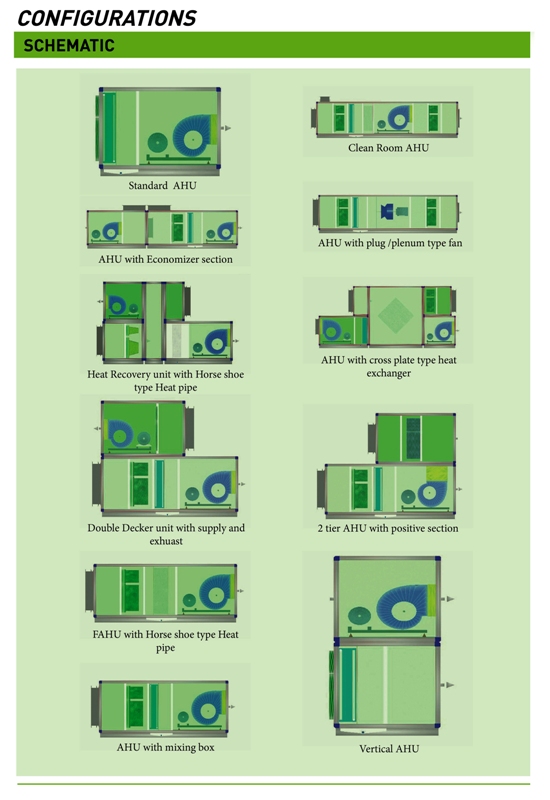

Configuration

• Single Tier
• Double Tier
• Horizontal Floor Mounted unit
• Ceiling Suspended units
• Horizontal Floor Mounted units
• Vertical Floor mounted units
