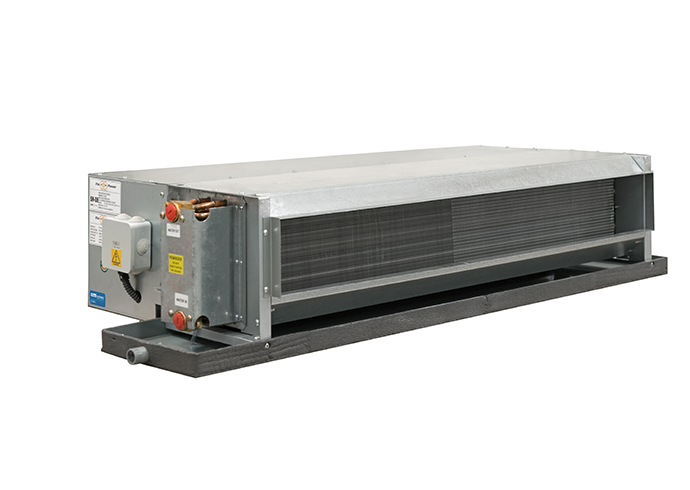

Fan Coil Unit

Fan Coil Units (FCU) are used in buildings to heat or cool a specific space. It is essentially made up of a motor with a fan, a heating or cooling coil connected to the building’s central hot water and cold water system, and a valve with a controller. In simple terms, Fan Coil Unit is a heat exchanger where the fan and motor brings air, which is a medium of transfer, to the copper coil. The coil is either having hotter or colder water so transfers the heat to the flowing air.

Our fan coil units are now AHRI certified.

  • Airflow range from 400 Cfm to 3000 Cfm.
  • ESP range from 20 Pa ~ 250 Pa.
  • Coil number of rows from 2 to 6 rows.
  • Medium – water.
  • District cooling or chiller.
  • 2 pipe system.
  • GI casing well insulated and robust construction.
  • Forward curved DIDW fan with a statically and dynamically balanced impeller to handle high static with low noise.
  • 3-speed permanent split capacitor run, thermally protected motor.
  • Maintenance free permanent lubricated ball bearing.
  • AC 220 ~ 240 volt, 50 Hz, single phase, IP 20, Class B insulated motors with anti-vibration rubber mounts.
  • Electronically Commutated ( EC) motors, 50/60 Hz, Class B insulation, IP 20, 3 Speed or Step less control as an option for high efficiency can be provided
  • All motors are wired to a junction box for easy connection. A wiring diagram is provided to identify neutral.
  • Return air plenum and filter.
  • Access panel provided below plenum for access to motor and fan.
  • Aluminum fins are mechanically bonded over 3/8” copper tubes for higher.
  • Copper headers with air vent and drain plug.
  • Low height for fitting in ceiling voids
  • Die-cast powder coated drain pan with foam insulation.
  • Coarse filter with up to 65% efficiency.

Optional Features

  • As per IAQ requirements, we can provide higher grade filters for our Fan coil Unit. However, performance needs to be checked with us as a consequence.
  • Split filters can be provided for easy maintenance
  • Bottom/ Side removable filters can be provided when return is ducted.
  • Bottom return plenum can also be provided.
  • Cutouts can be provided on the plenum sides for treated fresh air entry mixing.
  • Copper fins can be provided for highly corrosive environment.
  • Aluminium fins with coating or fins produced by using coated aluminum fin stock can be provided.
  • Class F insulated motors and higher IP ratings available.
  • Stainless steel drain pans with foam insulation.
  • Extended drain pan and auxiliary drain pans.
  • 2-way /3-way valves with actuators.
  • Thermostat
